What is Genotyping by Sequencing?

Genotyping by Sequencing, also known as GBS, is a revolutionary method used for discovering novel plant and animal single nucleotide polymorphisms (SNPs) and performing genotyping studies. Molecular breeding utilizes DNA markers (SNPs) that are tightly linked to phenotypic traits to assist in selection to deliver improved plant and animal species for agricultural use. As major drivers like population growth, urbanization and economic development feed into an ever-complex agricultural landscape, GBS and agricultural genomics have taken a central role to offer sustainable solutions for the global food challenge.

Among the many genotyping platforms, such as PCR- and array-based methods, Next-Generation Sequencing (NGS) has proven to be an exceptional tool for the discovery, validation, and assessment of genetic markers. NGS offers high multiplex levels, robust call rates, and an economical approach to genotyping large numbers of SNPs and samples. Targeted genotyping by sequencing (tGBS) methods such as amplicon sequencing can focus on thousands of markers to provide a cost-effective, high-throughput genotyping solution that is customizable, flexible, and scalable.

Amplicon sequencing is a quick and easy targeted sequencing method with a simple workflow and fast turnaround time, as compared to hybrid-capture sequencing. It has naturally higher on-target rates than other targeted sequencing methods due to the precision of primer design.

Product Highlight

The AgriType™ Targeted Genotyping by Sequencing Solution is designed and developed to address large-scale genotyping projects in agrigenomics (the application of genomics in the field of agriculture). The AgriType™ solution is powered by an advanced primer design algorithm and an efficient ultra-high multiplex PCR-based target enrichment chemistry. AgriType genotyping by sequencing provides a cost-effective solution to construct NGS libraries to quickly and efficiently screen hundreds to tens of thousands of markers of interest to accelerate genotyping studies in fields such as aquaculture, livestock farming, and seed breeding.

View Product

Some of the key genotyping by sequencing applications include:

  • Marker-assisted selection (MAS)
  • Marker-assisted backcrossing (MABC)
  • Genomic selection (GS)
  • Trait mapping and screening
  • Quantitative trait locus (QTL) screening
  • Genetic linkage analysis
  • Germplasm or GMO characterization
  • Infectious disease identification
  • Parentage testing

AgriType™ Targeted Genotyping by Sequencing Solution

Cost-Effective Solution to Accelerate Molecular Breeding

The AgriType™ Targeted Genotyping by Sequencing Solution is designed and developed to address large-scale genotyping projects in agrigenomics (the application of genomics in the field of agriculture). The AgriType™ solution is powered by an advanced primer design algorithm and an efficient ultra-high multiplex PCR-based target enrichment chemistry. AgriType genotyping by sequencing provides a cost-effective solution to construct NGS libraries to quickly and efficiently screen hundreds to tens of thousands of markers of interest to accelerate genotyping studies in fields such as aquaculture, livestock farming, and seed breeding.

  • Scalable High-Throughput Genotyping System. Target thousands of relevant markers in the same assay.
  • Fast Turnaround Time. Get custom assays delivered in 4 to 6 weeks. Use AgriType genotyping solution to accelerate your large-scale molecular breeding programs. Our PhD-level expert scientists are here to provide speedy and comprehensive support throughout the design, ordering, and technology adoption process, including excellent after-sales technical support.
  • Cost-Effective Solution. Process thousands of samples at a time on Illumina® platform. We support 6144 Illumina combinatorial indexes for high-throughput workflows.
  • Minimizes consumable consumption. This single-plate workflow reduces consumable cost and loss of material from material transfer.
  • Streamlined, Automation-Friendly Workflow. Generate sequencing-ready libraries in just 3 hours using a simple, three-step protocol that can be easily automated.
  • High-Quality, Reproducible Results. Prepare high-quality NGS libraries with high marker call rates and efficient use of sequencing reads.

Learn more about molecular breeding

High-Quality GBS Amplicon Library Powered Proprietary Primer Design and Chemistry

The AgriType genotyping solution is powered by our proprietary multiplex PCR chemistry (amplicon) and highly advanced primer design algorithm. Platform-specific index primers are used to generate AgriType™ target-enriched amplicon libraries. We support up to 6144 Illumina combinatorial indexes for high-throughput workflows. Custom panels can be designed for your crop of interest in as little as 2 weeks and all the materials you need to generate high quality targeted NGS libraries are shipped to your lab in another 2-4 weeks. Our technical support team will support your initial testing for high performance right out of the box.

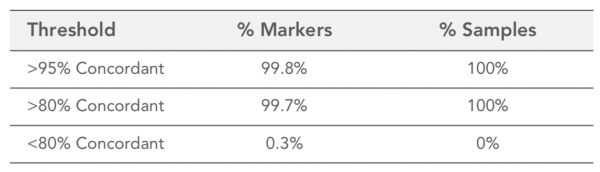

High Concordance with Whole Genome Sequencing Data

A 2,000+ amplicon AgriType™ custom NGS panel for plant breeding was developed for a large crop science company. To test the robustness of AgriType™ solution, 8 samples that were previously genotyped using whole genome sequencing (WGS) were used to construct AgriType target-enriched NGS libraries and the data compared. Of the 2,000+ markers tested, 99.5% showed high concordance with WGS results, and perfect concordance was obtained at the sample level.

Threshold% Markers% Samples
>95% Concordant99.5%100%
>80% Concordant99.7%100%
<80% Concordant0.3%0%

AgriType Auto Target Enrichment and Library Preparation

3-5 hours of total assay time, 20 minutes of hands-on time

How Does AgriType Auto Work?

The AgriType™ Auto genotyping by sequencing solution has been optimized to accommodate higher-throughput needs and offers a streamlined workflow that is easily automated in both 96 and 384 well plates. The multiplex PCR-based protocol can be completed in just 3 hours, with very little hands-on-time of 25 minutes via a simple multiplexing PCR followed by an indexing PCR.

DNA Purification and QC

1.Multiplex PCR

2. Dilution Step

3. Indexing PCR

Quality Control

Sequencing

Data Analysis

“We finally ran our pilot. The data is beautiful! Targets had great coverage and it was very uniform. The protocol is well-written and easy to follow. I’m not sure how Paragon Genomics does it but it is really impressive. Thanks so much to you and your custom panel design team! They did an amazing job! SUPER great experience.” - Scientist, Fortune 500 Agricultural Chemical Company

High-Quality AgriType NGS Panels for All Panel Sizes

AgriType™ panels show consistently superior sequencing specifications, accomodating a wide gamut of panel size, to meet all your research needs. AgriType auto offers detection of up to 7000 targets in a single panel.

Amplicons
per
reaction
Uniformity
(0.2x Mean
Coverage)
% Mapping Rate% On-Target Rate
15100%98.8%98.9%
109100%96.2%99.2%
20099.5%97.2%96.8%
60099.5%99.0%97.5%
150098.8%99.7%96.4%
Panel SizeUniformity (%)% Mapping Rate% On Target Rate
2550 (Cotton)94.5799.8788.47
436 (Tomato)96.7597.6099.38
6806 (Soybean)81.24599.93595.06
200 (Corn)86.6793.6797.60

Genotyping By Sequencing: Frequently Asked Questions

Amplicon sequencing provides a lower-cost and faster alternative to other methods such as PCR, microarray, and hybrid capture sequencing. It is particularly suitable for genotyping studies that focus on specific genomic regions and require high on-target rates.

High throughput phenotyping and genotyping offer critical decision-making information to feed breeding strategies. The growth in genomic technology has allowed researchers to accurately assess genetic markers with high resolution and link them to phenotypic variation. This has led to the identification of certain markers as relevant for drought tolerance, response to a particular virus, etc.
Array-based approaches to genotyping have historically been the gold standard to analyze regions of the genome for agriculture. However, with the advent and massive development in next-generation sequencing (NGS), researchers have turned to genotyping by sequencing as a method to screen novel regions of interest for plants and animals. For applications such as genetic mapping and variant discovery, genotyping by NGS offers a lower cost per sample.
We only require the targeted bases such as SNPs you’re interested in and the reference genome for the crop of interest. The bases can be provided as a BED file and submitted to our design portal (https://www.paragongenomics.com/panel-design-my-design-requests/)

AgriType uses a powerful multiplexed approach that allows users to interrogate large regions of interest across hundreds to thousands of samples. We support 6144 Illumina combinatorial indexes for high-throughput workflows. Our high uniformity of amplification, high mapping rates, and on-target rates enable efficient use of sequencing space. For example, for a 1000 amplicon panel, up to 150 samples can be fit on a Miseq and 1300 samples on a NextSeq with an average of 100X coverage.

AgriType libraries are compatible for sequencing on major sequencing platforms such as Illumina® and Ion Torrent™. Downstream data analysis can be completed easily on the Illumina basespace variant callers or Torrent space and add on modules to enable labs to assess relevant sequencing metrics. If relevant, open source bioinformatics pipelines like TASSEL-GBS can be utilized for processing of raw GBS sequencing data into SNP genotypes.

MAS involves using molecular markers to select plants or individuals with specific traits without necessarily involving backcrossing. It’s broader and can be applied in various breeding contexts.

MABC involves using molecular markers to identify and select genes controlling specific traits (e.g., resistance) and introgressing them from a donor parent into a recurrent parent through repeated backcrossing.
