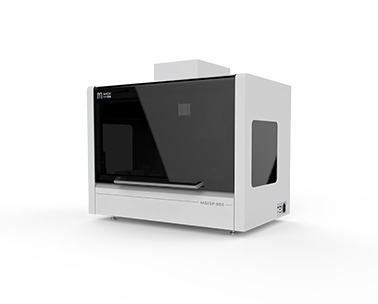

MGISP-960RS Automated Sample Preparation System

MGISP-960 High-throughput Automated Sample Preparation System is a flexible, fully automated workstation with a built-in NGS sample-prep process and more tailored workflows to satisfy each lab’s needs and budget.

Contact Sales for pricing information: 415-855-0957 / [email protected]

Request a Quote

Product Description

MGISP-960 High-throughput Automated Sample Preparation System is a flexible, fully automated workstation with a built-in NGS sample-prep process and more tailored workflows to satisfy each lab’s needs and budget. Handling 8 to 96 sample during a run, it has a 24-position board supporting multiple combinations of functional modules. Applications are available for genomics, cell biology, drug discovery, protein science, analytical chemistry, etc.

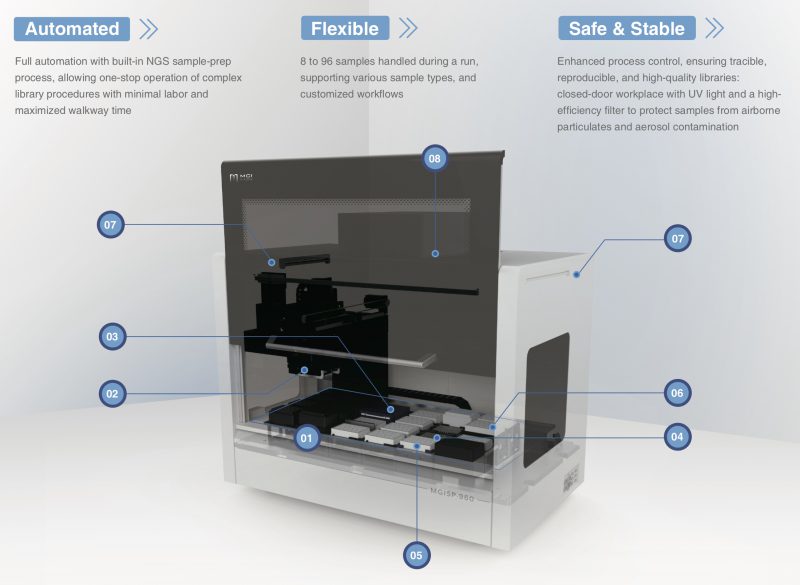

Highlights

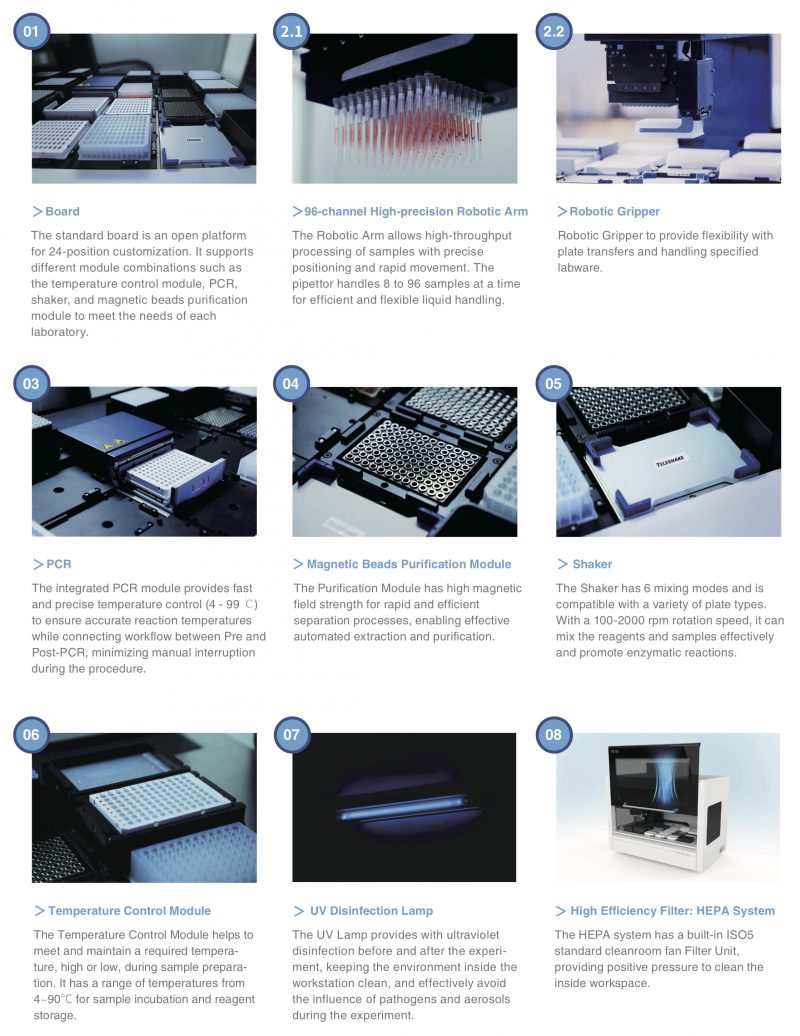

  • User-defined
    24-position board supporting multiple combinations of functional modules, and tailored workflows to satisfy each lab’s needs and budget.
  • Efficient & Accurate
    96-channel pipettor with a robotic gripper to ensure high precision and reproducibility.
  • Easy to Operate
    Fully automated workflow and user-friendly interface with compatible reagents and software.
  • Varied Applications
    Applications appropriate for genomics, cell biology, drug discovery, protein science, analytical chemistry, etc.



Contact Sales for pricing information: 415-855-0957 / [email protected]



For Research Use Only. Not for use in diagnostic procedures.

Throughput
96 samples per run

Sample Type
plasma, saliva, FFPE, gDNA, WGA products etc.

Pipette Range
2~200ul

Pipette Accuracy
Volume 2ul 200ul
CV <5% <1% Accuracy <±10% <±1% Temperature Range
PCR: 4 ~ 99℃ ；Temperature Control Module: 4~90℃

Temperature Accuracy
PCR：±0.3℃ at 55℃；Temperature Control Module：±1℃ at 55℃；

Temperature uniformity
PCR：±0.2℃ at 72℃；Temperature Control Module:±1℃ at 72℃

Documents

Product Brochure

Power Requirements
Voltage：200~240V，50/60Hz
Rated Power：the standard configuration – Less than 2,000 VA

Dimensions
Length：1240mm，Width：740mm，Height：1110mm

Weight
250kg

Working Environment
Temperature：19℃~25℃
Humidity：20%RH~80%RH，non-condensation
Air pressure：80~106kPa
